WLAN 2.4G / 5G 雙工器產品

KCT2494G93T02BC

WLAN 2.4G / 5G 雙工器產品

產品介紹

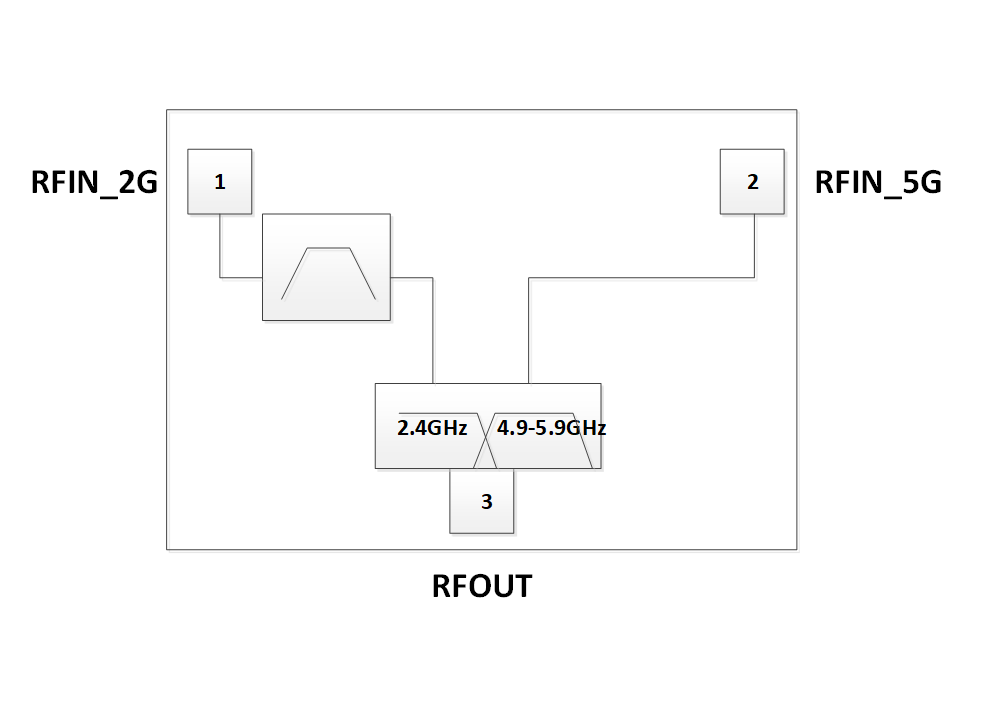

KCT2494G93T02BC is a module that splits 2.4GHz and 5GHz signals from a single WLAN antenna. The part is housed in a 1.6 x 0.8 mm laminate-based over-molded module. This device provides excellent insertion loss for both the  2.4GHz and 5GHz signals while effectively protecting each band from the other. This diplexer is designed to match natively to 50 Ohms. No external matching is required.

產品規格

TypeInfrastructure
Frequency (MHz)2,400 to 2,500,
4,900 to 5,950
Bandwidth (MHz)40, 80, 160
Insertion Loss (dB)0.47, 0.55
Attenuation (dB) 36, 32
Package TypeLaminate
Package (mm)1.6*0.8



WLAN 2.4G / 5G 雙工器產品
