2.4GHz 802.11be RF Front-End Module

KCT8270HT

2.4GHz 802.11be RF Front-End Module

產品介紹

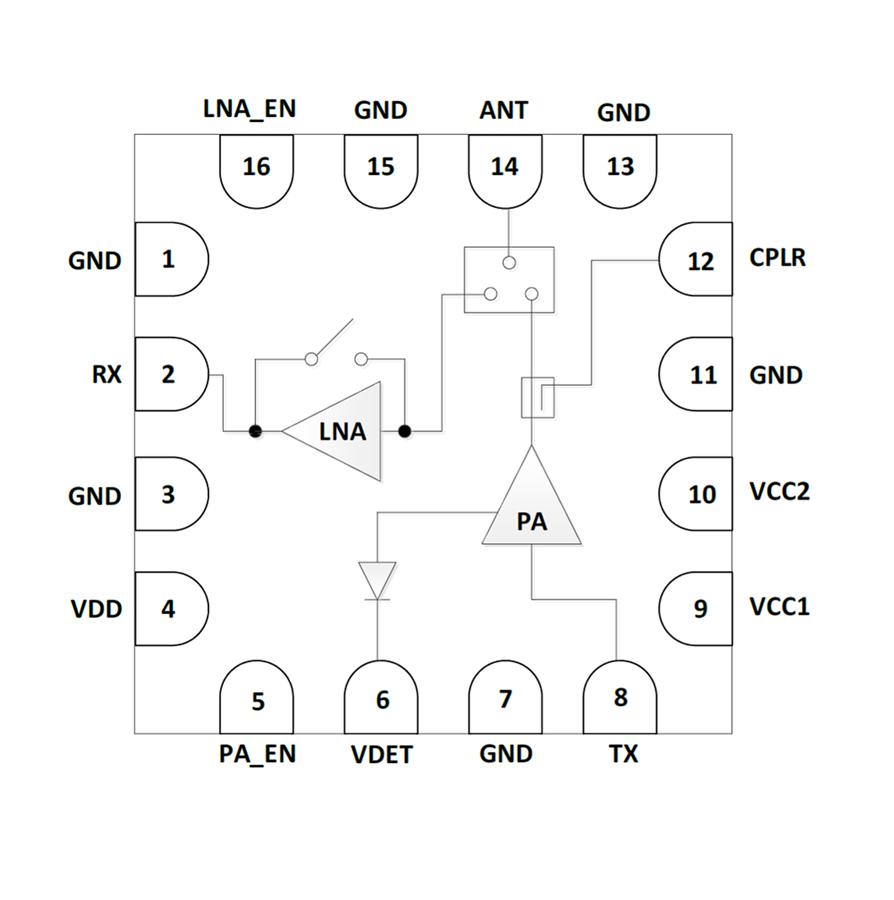

KCT8270HT is a fully integrated 802.11b/g/n/ac/ax/be WLAN RF Front-End module (FEM) which incorporates key RF functionality, it is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.



KCT8270HT is a 5V&3.3V supply voltage power amplifier that conserves power consumption while remain the highest linear output power and excellent throughput. A DC voltage output power detector and a directional RF coupler are integrated to accurately monitor the output power of the PA.

KCT8270HT is assembled in a compact, low-profile 3×3×0.76mm 16-pin LGA package. It is the perfect RF Front-End solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.


產品規格

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Integrated RF & DC power detector

Transmit gain: 30dB at 5V and 29dB at 3.3V

Receive gain: 14.5dB at 5V&3.3V

Noise Figure: 1.4dB at 5V and 1.5dB at 3.3V

Output power:

+20dBm @-43dB DEVM, EHT40 MCS13, 5V

+21dBm @-40dB DEVM, HE40/MCS11, 5V

+23dBm @-35dB DEVM, VHT40/MCS9, 5V

+24dBm @-30dB DEVM, HT20/MCS7, 5V

Output power:

+16dBm @-43dB DEVM, EHT40/MCS13, 3.3V

+18dBm @-40dB DEVM, HE40/MCS11, 3.3V

+19dBm @-35dB DEVM, VHT40/MCS9, 3.3V

+20dBm @ -30dB DEVM, HT20/MCS7, 3.3V

ESD protection circuitry on all PINs

Minimal external components required

Small package: LGA-16L, 3mm x 3mm x 0.76mm (MSL3, 260℃ per JEDEC J-STD-020)

RoHS and REACH compliant


2.4GHz 802.11be RF Front-End Module
