2.4GHz Low Noise Amplifier with Switch Module

KCT4223L

2.4GHz Low Noise Amplifier with Switch Module

產品介紹

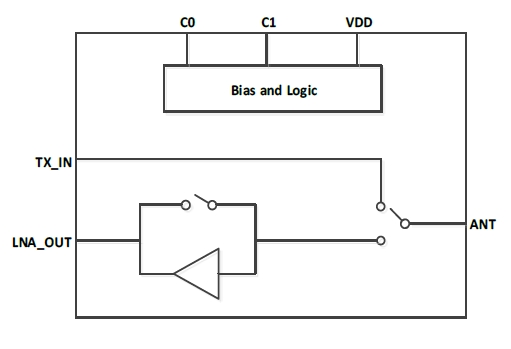

KCT4223L is an integrated Front-End module (FEM) which integrates a low noise amplifier (LNA) with bypass, and single-pole double-throw (SPDT) switch in one device. KCT4223L has a low noise figure (NF) and simple control logic.



KCT4223L operates at 3.3V and draws low current. In the transmit mode, a shutdown function saves power when the device is inactive.



KCT4223L is assembled in a compact, low-profile 2.3x2.3x0.55mm 16-pin QFN package. KCT4223L is the ideal RF front-end solution for implementing 2.4GHz high-power WLAN systems supporting multiple standards including 802.11b/g/n/ac/ax.


產品規格

Integrated 2.4GHz LNA with Bypass and SPDT Switch

LNA Gain: 16dB at 3.3V

Noise Figure: 2.5dB at 3.3V

TX Mode with 0.65dB Insertion Loss

Input and Output Matched to 50Ω

High Transmit to Receive Isolation for High-power Applications

Small Package: QFN-16L, 2.3mm x 2.3mm x 0.55mm (MSL3, 260℃per JEDEC J-STD-020)

ROHS and REACH Compliant


2.4GHz Low Noise Amplifier with Switch Module
